Compressed Air System for Pneumatic Control Equipment

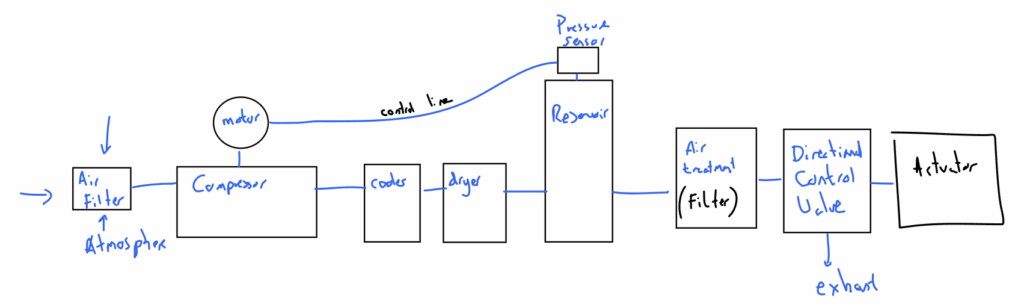

Here’s a breakdown of a system capable of supplying clean, dry, and consistent compressed air suitable for use in pneumatic control equipment:

Components:

  1. Air Compressor:
    • The heart of the system, it uses pistons or vanes to compress atmospheric air to a higher pressure.
  2. Air Intake Filter:
    • Removes dust, dirt, and other contaminants from the incoming air before it enters the compressor to protect internal components and prevent wear.
  3. Air Intake Silencer (Optional):
    • Reduces noise generated by the air intake process, improving the working environment.
  4. Intercooler (Optional):
    • Cools down the compressed air after it leaves the first stage of compression in a two-stage compressor. This improves efficiency and reduces the risk of condensation in downstream piping.
  5. Aftercooler:
    • Cools down the compressed air significantly after final compression. This helps to remove moisture and reduce the risk of condensation forming within the system, which can damage control equipment.
  6. Separator:
    • Separates condensed water and oil droplets from the compressed air stream. This further ensures clean, dry air for control equipment.
  7. Air Receiver:
    • A storage tank that holds the compressed air and helps to maintain a constant pressure for the control instrumentation system. It also allows for fluctuations in air demand to be met without the compressor needing to constantly cycle on and off.
  8. Drain Valve (Automatic and Manual):
    • The automatic drain valve periodically removes accumulated condensate from the air receiver to prevent corrosion and ensure clean air. A manual drain valve allows for additional draining as needed.
  9. Pressure Regulator:
    • Regulates the air pressure down to a specific level required by the control equipment. This ensures the equipment operates efficiently and avoids damage from excessive pressure.
  10. Line Filter:
    • Provides additional filtration for the compressed air before it reaches the control equipment, removing any remaining contaminants that might have passed through the previous filtration stages.
  11. Lubricator (Optional):
    • Injects a small amount of oil mist into the compressed air stream for lubrication of certain pneumatic components (e.g., cylinders, valves) if required by the system design. Not all control equipment needs lubrication.
  12. Control Panel:
    • May house controls for the system, including switches for the compressor and solenoid valve, pressure regulator adjustments, and possibly alarm systems. The specific features will vary depending on the system complexity.
  13. Solenoid Valve(s):
    • These electrically operated on/off valves control the flow of compressed air to specific control equipment based on electrical signals from the control system. Multiple solenoid valves can be used to manage air flow to different actuators or processes.

Additional Considerations:

  • Piping: The system will utilize appropriate piping to transport the compressed air. Material selection and proper installation are crucial to ensure pressure integrity and minimize pressure drops.
  • Dehydration Systems (Optional): In some applications where extremely dry air is critical, additional dehydration systems like desiccant dryers might be used to further remove moisture from the compressed air.
  • System Monitoring: Pressure gauges and other monitoring tools may be used to track system performance and identify potential issues like pressure drops or leaks.

By utilizing these components and proper maintenance practices, this system can ensure a reliable supply of clean, dry, and consistent compressed air for optimal operation of pneumatic control equipment.
