Double-Acting Piston Pump Operation

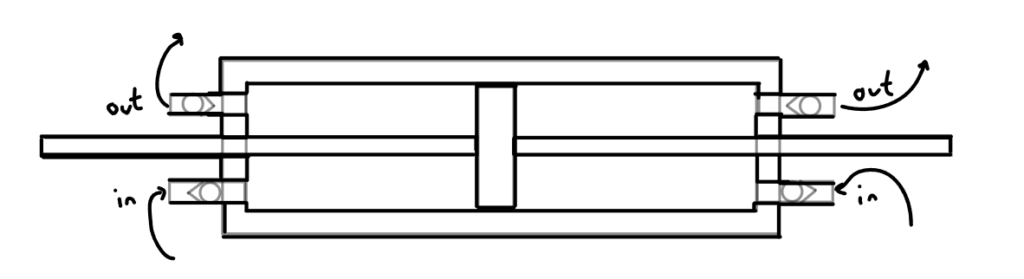

A double-acting piston pump utilizes a reciprocating piston within a cylinder to create a positive displacement flow of fluid. Here’s a breakdown of its operation:
Components:
- Housing: The main body of the pump, typically made of cast iron or steel for strength.
- Cylinder: A cylindrical chamber within the housing where the piston reciprocates.
- Piston: A tightly fitting cylindrical plunger that moves back and forth within the cylinder.
- Piston Rod: A rod connected to the piston, extending out of the cylinder to connect to the driving mechanism.
- Inlet Valves: One-way check valves located at each end of the cylinder, allowing fluid to enter but not flow back. These valves are typically located on the cylinder head and crankcase.
- Outlet Valves: One-way check valves located at each end of the cylinder, allowing fluid to exit but not flow back. These valves are typically located on the discharge manifold.
- Discharge Manifold: A chamber that collects the pressurized fluid from both sides of the piston and directs it out of the pump.
- Driving Mechanism: A crankshaft, connecting rod, or other mechanism that converts rotary motion into reciprocating motion for the piston rod.
Operation:
- Inlet Stroke:
- Piston Movement: The driving mechanism pushes the piston rod forward, causing the piston to move towards the opposite end of the cylinder.
- Inlet Valve Operation: The inlet valve on the forward end of the cylinder (crankcase side) opens, allowing fluid to enter the chamber in front of the piston. The inlet valve on the opposite end (cylinder head side) remains closed due to the pressure of the existing fluid in that chamber.
- Suction Creation: The movement of the piston creates a decreasing volume in the front chamber, generating a low-pressure zone. This low pressure draws fluid into the cylinder through the open inlet valve.
- Outlet Stroke:
- Piston Movement: The driving mechanism changes direction, pulling the piston rod back, causing the piston to move towards its original position.
- Outlet Valve Operation: The inlet valve on the forward end of the cylinder closes as the pressure in that chamber increases. The outlet valve on the opposite end (cylinder head side) opens due to the pressure of the trapped fluid behind the piston exceeding the discharge pressure.
- Displacement and Discharge: The movement of the piston back towards its original position reduces the volume in the chamber behind the piston. This pressurizes the trapped fluid, forcing it to flow through the open outlet valve on the cylinder head side and into the discharge manifold.
- Continuous Flow: The continuous back-and-forth motion of the piston creates a continuous flow of fluid into one side of the cylinder while simultaneously discharging pressurized fluid from the other side. The inlet and outlet valves ensure unidirectional flow during each stroke.
Key Points:
- Double Acting: The pump utilizes both the forward (inlet) and return (outlet) strokes of the piston to move fluid, resulting in a higher flow rate compared to single-acting piston pumps.
- Positive Displacement: The fixed volume between the piston and the cylinder ensures a constant amount of fluid is delivered with each cycle, regardless of the discharge pressure.
- High-Pressure Capability: Double-acting piston pumps can achieve high discharge pressures due to the balanced forces acting on the piston.
Note: This explanation provides a general overview of double-acting piston pump operation. Specific designs and functionalities may vary depending on the manufacturer and application. Some pumps might utilize different valve configurations or additional components for specific purposes.
