Sketch a valve operated, rotary vane steering gear, showing the hydraulic system from the directional valve to the rotary vane unit.
(10)
What is a valve operated, rotary vane steering gear?
A valve-operated, rotary vane steering gear is a type of hydraulic steering system used on ships to control the rudder’s movement and, consequently, the vessel’s direction. It employs a rotary vane actuator, controlled by hydraulic valves, to generate the necessary torque to turn the rudder stock.
1. Rotary vane steering gear – Dieselship.com
2. Reliability Analysis of a Rotary Vane Type Steering Gear System – ResearchGate
Key Components:
- Rotary Vane Actuator:
- Stator: A stationary housing with multiple internal vanes fixed in place.
- Rotor: A rotating cylinder with vanes that can slide in and out of slots within the rotor. 1. Pneumatic gear motor with rotary vanes: How does it work? blog.modec.fr
- Rudder Stock: The rotor is directly connected to the rudder stock, which in turn controls the rudder. 1. Steering gear – Oxford Reference www.oxfordreference.com
- Hydraulic Chambers: The vanes in the stator and rotor create sealed chambers that change in volume as the rotor turns.
- Hydraulic Power Unit (HPU):
- Supplies pressurized hydraulic fluid to the actuator. 1. Hydraulic Power Unit (HPU) for Oil & Gas Industry | IMI Critical www.imi-critical.com
- Typically includes multiple pumps (for redundancy), a reservoir, filters, and valves.
- Control System:
- Receives steering commands from the bridge (steering wheel or joystick) and transmits them to the hydraulic control valves.
- May include an electronic control unit (ECU) for processing commands and providing feedback on rudder position.
- Hydraulic Control Valves:
- Directional Control Valves: Control the flow of hydraulic fluid to and from the rotary vane actuator, determining the direction of rudder movement.
- Relief Valves: Protect the system from overpressure by venting excess fluid.
- Other Valves: May include check valves, isolation valves, and bypass valves for various control and safety functions.
Operation:
- Steering Command: The helmsman turns the steering wheel or moves the joystick, generating a steering command.
- Control Signal: The control system processes the command and sends signals to the hydraulic control valves.
- Valve Operation: The control valves open and close, directing pressurized hydraulic fluid to the appropriate chambers of the rotary vane actuator.
- Rotor Movement: The pressurized fluid pushes against the vanes in the rotor, causing it to rotate.
- Rudder Movement: Since the rotor is directly connected to the rudder stock, its rotation turns the rudder, changing the vessel’s direction.
- Feedback: Sensors on the rudder stock provide feedback on the rudder angle to the control system, allowing for precise control and autopilot functionality.
Advantages:
- Compact and Efficient: Rotary vane actuators are relatively compact and offer high power density, making them suitable for installations with limited space.
- Smooth and Precise Control: They provide smooth and accurate rudder movement, even at low speeds.
- Minimal Backlash: The design minimizes backlash (play or lost motion) in the system, improving steering responsiveness.
- High Reliability: With proper maintenance, they are reliable and have a long service life.
Disadvantages:
- Complexity: They can be more complex than some other steering gear types, requiring specialized knowledge for maintenance and repairs. 1. Rotary vane vs. RAM type steering gear – An in-depth comparison – AS SCAN as-scan.com
- Potential for Leaks: Like any hydraulic system, they can develop leaks, requiring regular inspection and maintenance.
Applications:
- Widely used on various types of vessels, including superyachts, commercial ships, and naval vessels. 1. Rotary Vane Steering System – Damen Marine Components www.damenmc.com
- Particularly suitable for vessels requiring precise and responsive steering control, even at low speeds.
In essence, a valve-operated, rotary vane steering gear provides reliable and precise control of a vessel’s rudder through the use of a hydraulically actuated rotary vane mechanism. Its compact design, smooth operation, and high reliability make it a popular choice for various marine applications.
1. Rotary vane vs. RAM type steering gear – An in-depth comparison – AS SCAN
Outline of the hydraulic system
let’s outline the hydraulic system from the directional valve to the rotary vane unit in a valve-operated, rotary vane steering gear:
Key Components and Flow Path:
- Directional Control Valve:
- This valve, often a 4/3-way valve (4 ports, 3 positions), controls the direction of hydraulic fluid flow to the rotary vane actuator, determining whether the rudder moves to port or starboard.
- It receives control signals from the electronic control unit (ECU) or other control system.
- High-Pressure Lines:
- Two high-pressure hydraulic lines connect the directional control valve to the rotary vane actuator.
- One line carries fluid to the port side of the actuator, and the other to the starboard side.
- These lines are typically made of steel or other high-pressure-rated materials to withstand the system’s pressure.

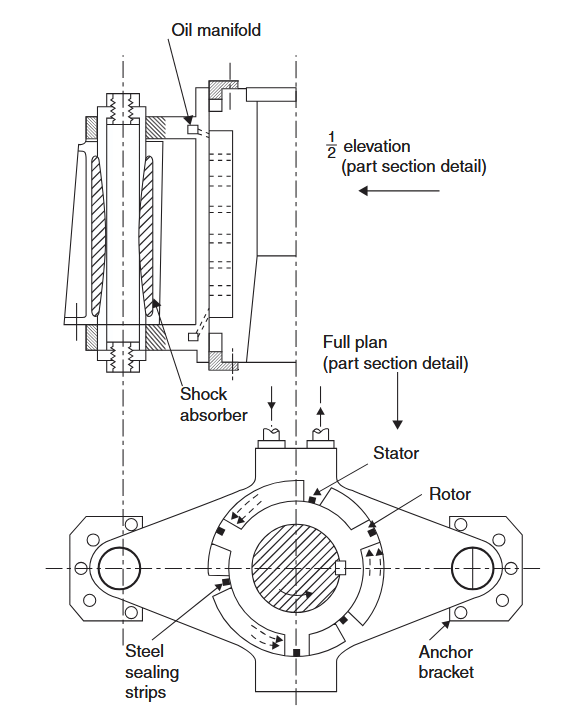

- Rotary Vane Actuator:
- The actuator consists of a stator (stationary housing) and a rotor (rotating cylinder) with multiple vanes.
- The vanes slide in and out of slots within the rotor, creating sealed chambers that change in volume as the rotor turns.
- The rotor is directly connected to the rudder stock.
- Fluid Flow and Rudder Movement:
- When the directional control valve directs pressurized fluid to one side of the actuator, it fills the chambers on that side, pushing the vanes outward and causing the rotor to turn.
- This rotation is transmitted to the rudder stock, moving the rudder in the corresponding direction (port or starboard).
- Simultaneously, fluid is drained from the opposite side of the actuator, allowing the vanes on that side to retract and creating a low-pressure area.
- The pressure differential across the rotor causes it to continue rotating, further moving the rudder.
- Return Line:
- A return line carries the low-pressure fluid from the actuator back to the hydraulic power unit’s reservoir.
Additional Components and Considerations:
- Check Valves: May be incorporated in the lines to prevent backflow and ensure unidirectional fluid flow.
- Relief Valves: Installed to protect the system from overpressure by venting excess fluid if the pressure exceeds a safe limit.
- Filters: Filters might be present in the lines to remove contaminants from the hydraulic fluid and protect the actuator’s internal components.
- Accumulators (Optional): Accumulators can be used to store pressurized fluid, providing additional power for rapid rudder movements or acting as a backup in case of a pump failure.
- Sensors: Position sensors on the rudder stock provide feedback to the control system on the actual rudder angle.
In Summary:
The hydraulic system from the directional valve to the rotary vane unit is responsible for translating the control signals into the actual movement of the rudder. Pressurized hydraulic fluid, controlled by the directional valve, flows to the rotary vane actuator, causing the rotor to turn and move the rudder. The system also incorporates safety features like relief valves and may include additional components like filters and accumulators to enhance its performance and reliability.
