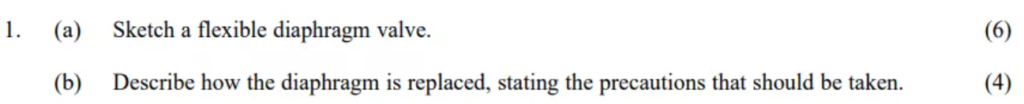

(a) Sketch a flexible diaphragm valve. (6)
(b) Describe how the diaphragm is replaced, stating the precautions that should be taken. (4)
Flexible diaphragm valve
A flexible diaphragm valve is a type of valve that uses a flexible diaphragm to control the flow of fluids. The diaphragm acts as a barrier between the valve body and the fluid, providing a tight seal and preventing leakage.
1. Diaphragm valve – Wikipedia
2. What are the Advantages of Diaphragm Valves? – Petron Thermoplast
Key Features:
- Flexible Diaphragm: The most prominent feature is the flexible diaphragm, typically made of rubber, elastomer, or PTFE (Teflon). It sits across the valve body, separating the fluid from the operating mechanism. 1. What are the Advantages of Diaphragm Valves? – Petron Thermoplast petronthermoplast.com2. What is a diaphragm valve? – Fluid Controls www.fluidcontrols.co.uk
- Weir or Saddle: The diaphragm seals against a weir (saddle) or seat within the valve body to control the flow. 1. A Primer on Hygienic Diaphragm Valves – Central States Industrial www.csidesigns.com
- Glandless Design: Unlike many other valve types, diaphragm valves don’t have a traditional stem packing, eliminating a potential leakage point and reducing maintenance needs. 1. Diaphragm Valves | Tru-Tech Valve www.trutechvalve.com
- Corrosion Resistance: The diaphragm and valve body can be made from various materials resistant to corrosive fluids, making them suitable for handling a wide range of chemicals and aggressive media. 1. Diaphragm valve vs globe valve for chemical processing applications – MGA Controls www.mgacontrols.com
Operation:
- Opening: When the valve is opened, the diaphragm is lifted away from the weir or seat by the actuator, allowing fluid to flow through. 1. Things You Must Know About Diaphragm Valve And How It Works – KDV Flow kdvflow.co.uk
- Closing: When the valve is closed, the actuator pushes the diaphragm down onto the weir or seat, creating a tight seal and stopping the flow.
Advantages:
- Excellent Isolation: The diaphragm provides a complete seal, preventing contamination of the fluid and protecting the valve’s internal parts from corrosive or abrasive media. 1. Diaphragm Valves | Tru-Tech Valve www.trutechvalve.com
- Hygienic: The smooth, unobstructed flow path and lack of internal cavities minimize areas for bacteria or contaminants to accumulate, making them ideal for hygienic applications like food processing or pharmaceuticals.
- Corrosion Resistance: The selection of diaphragm and body materials allows for handling a wide range of corrosive fluids. 1. Diaphragm Valve Materials of Construction – Tru-Tech Valve www.trutechvalve.com
- Abrasion Resistance: The flexible diaphragm can withstand some level of abrasion, making them suitable for fluids containing suspended solids. 1. Abrasive Fluids Diaphragm Valves www.trutechvalve.com
- Low Maintenance: The absence of gland packing reduces maintenance requirements and potential leakage points.
Disadvantages:
- Limited Pressure and Temperature: Diaphragm valves are generally suitable for lower pressure and temperature applications compared to some other valve types. 1. Diaphragm Valves: Types, Uses, Features and Benefits – IQS Directory www.iqsdirectory.com
- Limited Throttling: While they offer some flow control, diaphragm valves are not ideal for precise throttling applications.
Applications:
- Chemical Processing: Handling corrosive or abrasive chemicals. 1. The Benefits Of KDV Weir Diaphragm Valves – AC Valve Alliance Group acvalvealliance.com
- Pharmaceutical Industry: Maintaining hygienic conditions.
- Food and Beverage Industry: Ensuring product purity and preventing contamination. 1. The Top 5 Benefits of Using Diaphragm Valves in Your Industrial Process dfc.co.za
- Water and Wastewater Treatment: Handling various water qualities and slurries. 1. Diaphragm Valves: Types, Uses, Features and Benefits – IQS Directory www.iqsdirectory.com
- Other Applications: Where isolation, corrosion resistance, and hygiene are priorities.
In summary, flexible diaphragm valves provide a unique solution for controlling the flow of various fluids, especially in demanding environments where hygiene, corrosion resistance, and abrasion resistance are crucial.
Main Components
The main components of a flexible diaphragm valve include:
- Valve Body:
- This is the main housing of the valve, typically made of metal (such as cast iron, stainless steel, or bronze) or plastic (such as PVC or polypropylene). 1. The Basic Parts of a Valve – ValveMan.com valveman.com
- It contains the inlet and outlet ports for fluid flow and provides structural support for the other components.
- Diaphragm:
- This is the flexible membrane, usually made of rubber, elastomer, or PTFE, that creates a barrier between the fluid and the valve’s operating mechanism. 1. Diaphragm Valve Detailed Overview and Selection Guide – Tameson.com tameson.com
- It’s the key component responsible for sealing and controlling the flow. 1. Diaphragm Valve Detailed Overview and Selection Guide – Tameson.com tameson.com
- Weir or Saddle:
- This is the raised portion within the valve body against which the diaphragm seals to shut off the flow. 1. Diaphragm Valve Detailed Overview and Selection Guide – Tameson.com tameson.com
- The shape of the weir or saddle can vary depending on the valve design and desired flow characteristics.
- Compressor:
- This is a plate or disc connected to the valve stem that pushes down on the diaphragm to close the valve.
- It’s typically made of a rigid material like metal or plastic.
- Valve Stem:
- This is the vertical shaft that connects the actuator (handwheel or actuator) to the compressor. 1. Diaphragm Valves: Types, Uses, Features and Benefits – IQS Directory www.iqsdirectory.com
- It transmits the motion from the actuator to the diaphragm, controlling its position and hence the valve’s opening or closing. 1. Diaphragm Valves: Types, Uses, Features and Benefits – IQS Directory www.iqsdirectory.com
- Actuator:
- This is the mechanism that operates the valve, either manually (a handwheel) or automatically (an electric, pneumatic, or hydraulic actuator).
- Bonnet:
- This is the cover that encloses and protects the valve’s internal components, including the stem and compressor. 1. Diaphragm Valves: Types, Uses, Features and Benefits – IQS Directory www.iqsdirectory.com
- It is usually bolted to the valve body and may contain a packing gland (if present) to prevent leakage around the stem. 1. Diaphragm Valve Detailed Overview and Selection Guide – Tameson.com tameson.com
Optional Components:
- Position Indicator: A visual or electronic indicator to show the valve’s open or closed position. 1. What is a diaphragm valve? – Fluid Controls www.fluidcontrols.co.uk
- Limit Switches: Electrical switches that can be activated at specific valve positions to provide feedback or control signals to other systems.
- Solenoid Valve: In some automated systems, a solenoid valve may be used to control the air or hydraulic pressure that actuates the diaphragm valve.
In summary, the main components of a flexible diaphragm valve work together to create a reliable and versatile valve suitable for a range of applications, especially where isolation, hygiene, and corrosion resistance are crucial.
Replacing the diaphragm
Replacing the diaphragm in a flexible diaphragm valve is a relatively straightforward maintenance procedure, although the exact steps may vary depending on the specific valve model and manufacturer. Here’s a general outline of the process:
- Isolation and Depressurization:
- Isolate the Valve: Close any upstream and downstream isolation valves to prevent fluid flow through the diaphragm valve.
- Depressurize the System: Release any pressure within the valve by opening a vent or drain valve, ensuring safe working conditions.
- Disassembly:
- Remove Bonnet: Unbolt and remove the bonnet or cover on top of the valve body to access the internal components.
- Detach Actuator (if applicable): If the valve is actuated (electric, pneumatic, or hydraulic), disconnect the actuator from the valve stem.
- Remove Compressor and Diaphragm: Carefully lift out the compressor and the old diaphragm from the valve body.
- Inspection and Cleaning:
- Inspect Valve Body and Weir/Saddle: Check the valve body and weir/saddle for any signs of corrosion, damage, or debris buildup. Clean them thoroughly if necessary.
- Check Stem and Compressor: Inspect the valve stem and compressor for wear or damage. Replace them if necessary.
- Install New Diaphragm:
- Select Correct Diaphragm: Ensure you have the correct replacement diaphragm that matches the valve model and specifications.
- Position Diaphragm: Carefully position the new diaphragm on the compressor, ensuring it’s centered and properly aligned.
- Reassemble: Place the compressor and diaphragm assembly back into the valve body, ensuring it seats correctly on the weir/saddle.
- Reassembly and Testing:
- Reattach Actuator: If applicable, reconnect the actuator to the valve stem.
- Replace Bonnet: Reinstall the bonnet and tighten the bolts evenly to the specified torque.
- Open Isolation Valves: Slowly open the upstream and downstream isolation valves.
- Check for Leaks: Visually inspect the valve and its connections for any leaks.
- Operational Test: Operate the valve (open and close) to verify smooth movement and proper sealing.
Safety Precautions:
- Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves and eye protection, when handling valve components and fluids.
- Follow Manufacturer’s Instructions: Always refer to the specific valve manufacturer’s instructions for detailed disassembly and reassembly procedures.
- Hazardous Fluids: If the valve handles hazardous fluids, take necessary precautions to avoid spills or exposure.
Tips:
- Cleanliness: Ensure all parts are clean and free of debris before reassembly.
- Lubrication: Apply lubricant to the stem threads and other moving parts as recommended by the manufacturer.
- Torque Specifications: Tighten bolts to the correct torque to avoid damage to the valve or leaks.
By following these general guidelines and referring to the manufacturer’s instructions, you can safely and effectively replace the diaphragm in a flexible diaphragm valve, ensuring its continued reliable operation and preventing leaks or contamination in your system.
Safety Precautions
When replacing the diaphragm in a flexible diaphragm valve, several precautions should be taken to ensure safety and prevent any potential issues during or after the replacement:
Safety Precautions:
- Isolation and Depressurization:
- Proper Isolation: Double-check that the upstream and downstream isolation valves are fully closed to prevent any fluid flow through the diaphragm valve during maintenance.
- Verify Zero Pressure: Ensure that the system is completely depressurized and drained before opening the valve. Use a pressure gauge or other means to confirm zero pressure.
- Release Trapped Pressure: If there is any residual pressure, slowly open a vent or drain valve to release it safely.
- Hazardous Fluids:
- Personal Protective Equipment (PPE): If the valve handles hazardous fluids, wear appropriate PPE, such as gloves, safety glasses, and respiratory protection, to avoid any contact or inhalation.
- Spill Containment: Have spill containment materials ready in case of accidental leaks or spills during the process.
- Ventilation: Ensure adequate ventilation in the work area, especially when handling volatile or flammable fluids.
- Mechanical Hazards:
- Sharp Edges: Be cautious of sharp edges on valve components during disassembly and reassembly to prevent cuts or injuries.
- Heavy Components: Some valve components, like the bonnet or actuator, may be heavy. Use proper lifting techniques or get assistance to avoid strains or injuries.
- Spring Tension: Be mindful of spring tension when disassembling valves with spring-loaded mechanisms. Release tension gradually and safely to avoid sudden movements or injuries.
Operational Precautions:
- Correct Diaphragm: Ensure you have the correct replacement diaphragm that matches the valve model and specifications. Using an incorrect diaphragm can lead to leaks or improper valve function.
- Cleanliness: Keep all parts and the work area clean to prevent debris or contaminants from entering the valve and affecting its performance.
- Proper Alignment: Ensure the new diaphragm is properly centered and aligned on the compressor before reassembly to avoid leaks or damage.
- Torque Specifications: Follow the manufacturer’s recommended torque specifications when tightening bolts during reassembly to prevent leaks or damage to the valve body.
- Lubrication: Apply appropriate lubricant to the stem threads and other moving parts as specified by the manufacturer to ensure smooth operation and prevent seizing.
Post-Replacement Checks:
- Leak Test: After reassembly, perform a thorough leak test to ensure there are no leaks around the valve body, bonnet, or stem connections.
- Operational Test: Operate the valve several times (open and close) to verify smooth movement and proper sealing.
- System Monitoring: Monitor the system after the diaphragm replacement for any signs of leakage or abnormal operation.
By following these precautions and taking care during the replacement process, you can minimize risks, ensure the proper installation of the new diaphragm, and maintain the valve’s reliable operation for its intended application.
