AME Unit 9 Q2

A thermocouple is a simple yet effective device for measuring temperature. It consists of two dissimilar metal wires joined at one end.

1. Thermocouple Explained | Working Principles – RealPars

2. Thermocouple – Wikipedia

Key Components:

• Thermocouple Junction: This is the point where the two dissimilar metal wires are joined. It’s the sensing element of the thermocouple.   1. What is a Thermocouple Junction? – Process Parameters Ltd www.processparameters.co.uk
• Thermocouple Wires: These are the two conductors made of different metals (e.g., iron and constantan, chromel and alumel). They should be electrically insulated from each other.   1. Thermocouple Wire FAQs | Allied University www.awcwire.com2. Understanding Thermocouples: 2024 Guide | Temp-Pro temp-pro.com
• Protective Sheath: To protect the thermocouple junction and wires from the environment, a protective sheath is often used. This sheath can be made of metal, ceramic, or other materials depending on the application.   1. The Benefits of Sheathed Thermocouples – WIKA blog blog.wika.us
• Connectors: At the other end of the thermocouple wires, connectors are typically attached for easy connection to measurement instruments.   1. Thermocouple Explained | Working Principles – RealPars www.realpars.com

Design Considerations:

• Metal Selection: The choice of metals for the thermocouple wires determines the temperature range and sensitivity of the sensor.   1. Measuring Temperature with Thermocouples, RTDs, and Thermistors – NI www.ni.com
• Junction Type: The way the wires are joined at the hot junction can affect the thermocouple’s response time and accuracy.   1. Thermocouple Explained | Working Principles – RealPars www.realpars.com
• Sheath Material: The sheath material must be compatible with the measured environment and provide adequate protection for the thermocouple wires.
• Compensation: To ensure accurate measurements, the cold junction temperature (the reference temperature) must be known and compensated for.   1. Two Ways to Measure Temperature Using Thermocouples Feature Simplicity, Accuracy, and Flexibility | Analog Devices www.analog.com

By carefully selecting the materials and design parameters, thermocouples can be tailored for a wide range of temperature measurement applications.

Opens in a new windowwww.edn.com

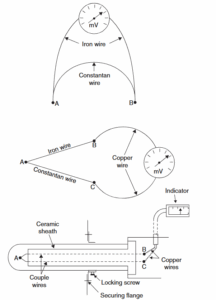

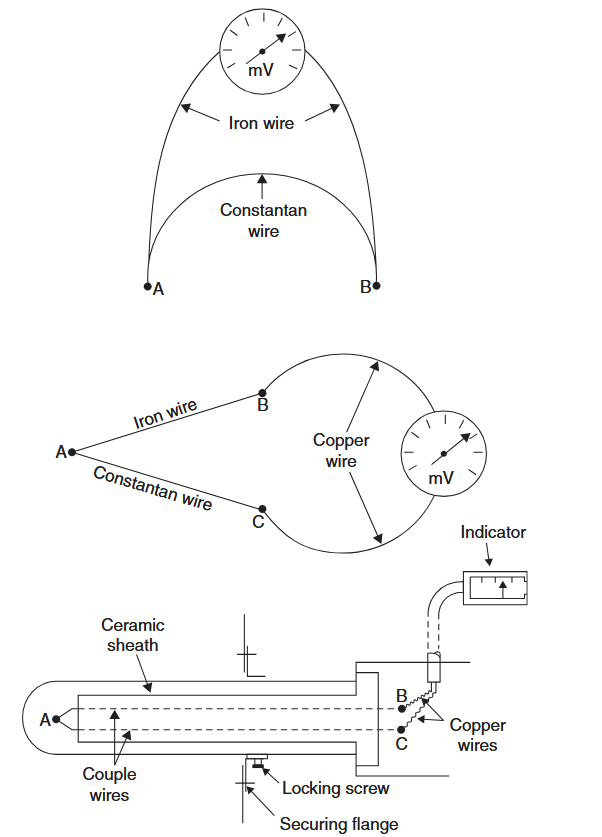

thermocouple design

A thermocouple operates based on a fundamental principle in physics called the Seebeck effect.

1. How Does A Thermocouple Work? Working Principle And Operation. – Omega Engineering

• Dissimilar Metals: A thermocouple consists of two different metal wires joined at one end, creating a junction. Common combinations include iron-constantan, copper-constantan, and chromel-alumel.   1. Thermocouple Theory | Fluke Process Instruments www.flukeprocessinstruments.com2. Types Of Thermocouples www.tci-inc.com
• Temperature Difference: When this junction experiences a temperature difference compared to the other end of the wires (often referred to as the cold junction), a voltage is generated.   1. Thermocouple Theory | Fluke Process Instruments www.flukeprocessinstruments.com
• Voltage Output: This generated voltage is directly proportional to the temperature difference between the two junctions.   1. Type E Thermocouple: High Accuracy & Wide Temperature Range – Cleveland Electric Labs clevelandelectriclabs.com
• Measurement: By measuring this voltage, we can determine the temperature at the hot junction, provided the temperature of the cold junction is known or compensated for.   1. Thermocouple – Wikipedia en.wikipedia.org

Key points:

Thermocouples are robust, inexpensive, and can measure a wide range of temperatures.   1. Thermocouples: Grounded, Ungrounded & Other Considerations – Omega Engineering www.omega.com

The type of metals used determines the thermocouple’s sensitivity and temperature range.   1. What Are the Uses & Types of Thermocouples? | Precision Mass www.precisionmass.com

The voltage output is relatively small, requiring amplification and calibration for accurate measurement.   1. AN-28: Thermocouple Measurement – Analog Devices www.analog.com

While thermocouples are widely used for temperature measurement, they do have some limitations:

• Low Output Voltage: The generated voltage is typically small, requiring amplification before measurement.   1. The Advantages and Disadvantages of Thermocouples – Process Parameters Ltd www.processparameters.co.uk
• Non-linearity: The relationship between temperature and output voltage is not perfectly linear, requiring compensation or calibration.   1. The Advantages and Disadvantages of Thermocouples – Process Parameters Ltd www.processparameters.co.uk
• Sensitivity to Noise: Thermocouple signals can be susceptible to electrical noise, necessitating proper shielding.   1. The Basics of Thermocouples | Analog Devices www.analog.com
• Accuracy: While thermocouples offer good accuracy, they are generally less precise than other temperature sensors like RTDs.   1. RTD vs Thermocouple – Minco www.minco.com
• Response Time: Thermocouples can have slower response times compared to other sensors, making them less suitable for rapidly changing temperatures.
• Cold Junction Compensation: Accurate temperature measurement requires compensation for the temperature at the cold junction.   1. What is a cold junction compensation for a thermocouple probe? – Omega Engineering www.omega.com
• Material Compatibility: The choice of thermocouple materials limits the measurable temperature range and environment.

Despite these limitations, thermocouples remain a popular choice for many applications due to their simplicity, reliability, and wide temperature range.

While thermocouples have their limitations, several techniques and technologies can be employed to mitigate these issues:

Improving Accuracy and Response Time

• Cold Junction Compensation: Using electronic circuits to compensate for the temperature of the cold junction, ensuring accurate measurements.   1. Two Ways to Measure Temperature Using Thermocouples Feature Simplicity, Accuracy, and Flexibility | Analog Devices www.analog.com
• Linearization: Employing mathematical algorithms or dedicated hardware to correct the non-linearity of the thermocouple output.   1. AN-1087: Thermocouple Linearization When Using the AD8494/AD8495/AD8496/AD8497 www.analog.com
• Faster Response Thermocouples: Utilizing thermocouples with thinner materials or different geometries can improve response time.

Reducing Noise and Interference

• Shielding: Using shielded thermocouple wires and proper grounding to minimize electrical noise.
• Amplification: Employing low-noise amplifiers to boost the thermocouple signal.
• Filtering: Using filters to remove unwanted noise frequencies.

Extending Measurement Range

• Thermocouple Types: Selecting the appropriate thermocouple type for the desired temperature range.
• Compensation Techniques: Using additional sensors or calculations to extend the measurable range.

By applying these techniques, the limitations of thermocouples can be significantly reduced, making them suitable for a wider range of applications.
